| MOQ: | 1 |
| Payment Terms: | L/C,D/A,T/T,D/P |
| Supply Ability: | Annual output :2000 |

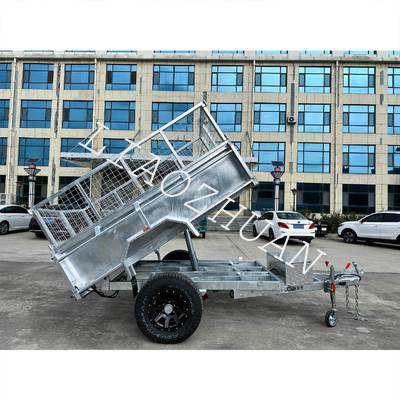

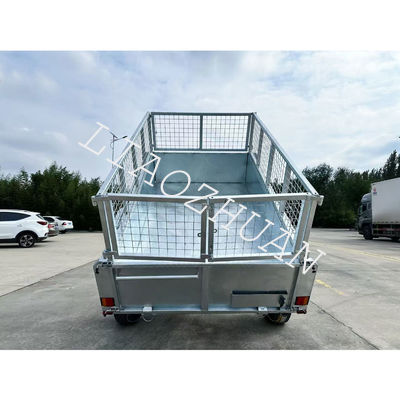

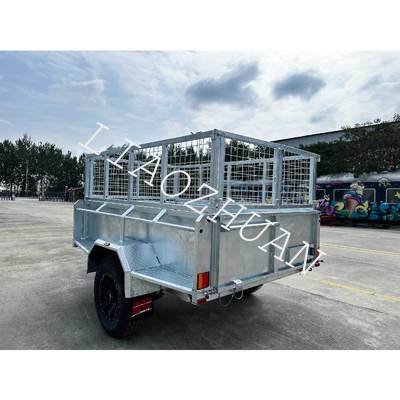

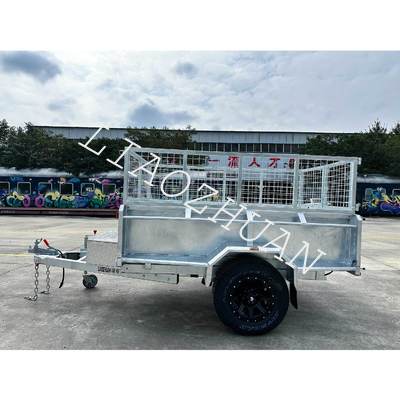

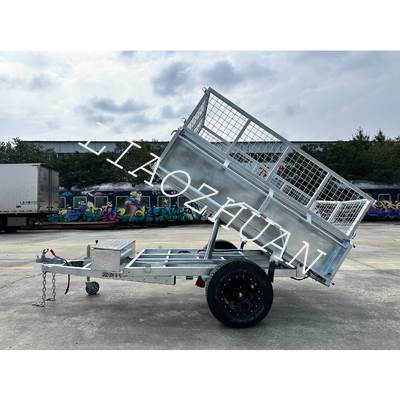

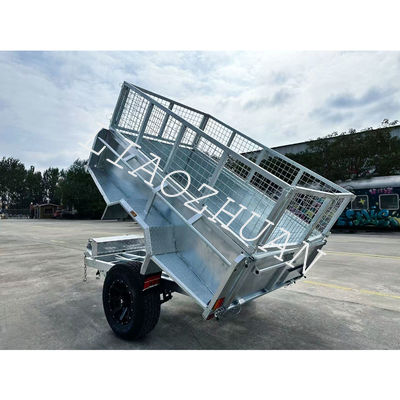

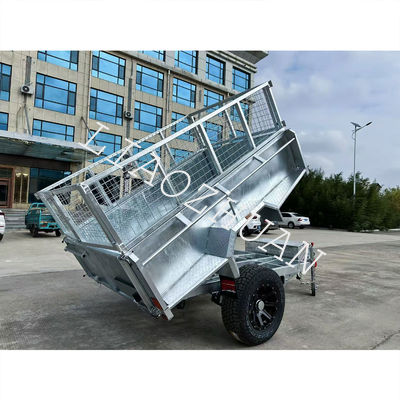

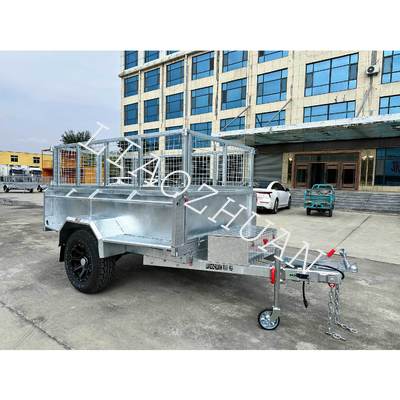

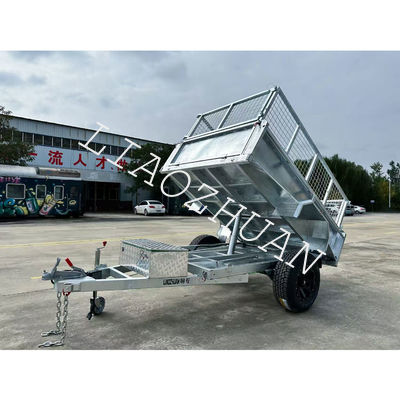

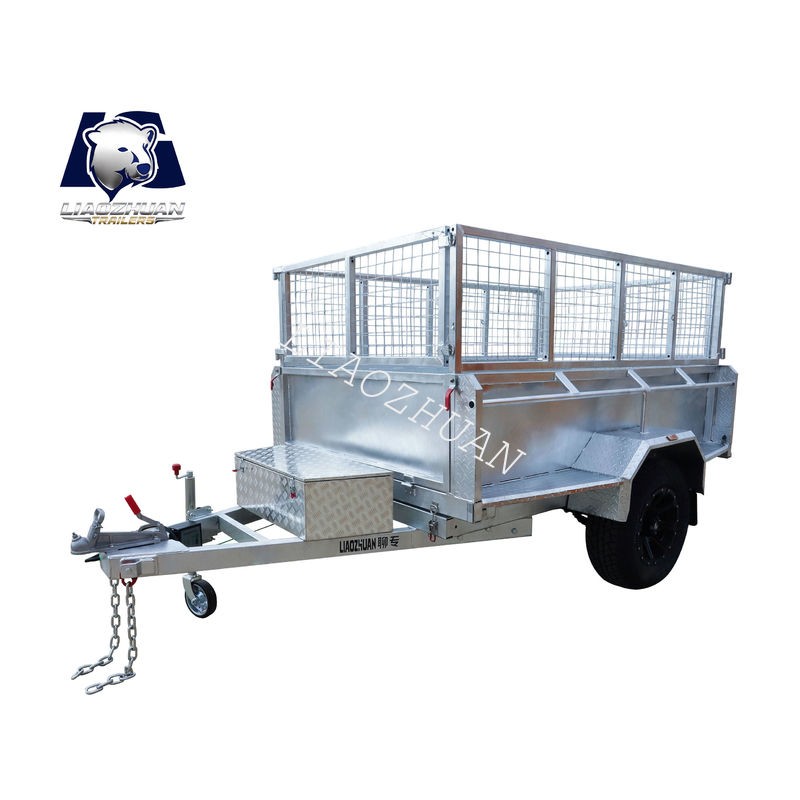

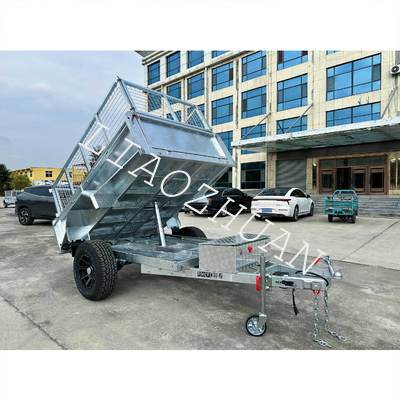

Single-Axis 8*5 Tipping Cage Trailer
We proudly introduce the 8×5 single axle hot dip galvanized box trailer (ATM 2000kg) — a robust, heavy-duty trailer built to handle demanding hauling tasks with confidence and compliance.
Each unit is rigorously tested and fully certified, meeting Australian Design Rules (ADR) and RVSA standards to ensure your safety, reliability, and legal compliance on Australian roads.
Engineered for superior load-bearing strength, this trailer features 60mm 6-leaf rocker roller springs, a 1800mm 100×50mm RHS drawbar, and your choice of either a 50mm 2000kg over-ride coupling or a 50mm 3500kg electric coupling.
Every design detail is focused on providing smoother towing, improved stability, and easier handling even under heavy loads.
Available in a range of sizes and configurations—including 8×5, 10×5, and 10×6—our tandem box trailer series offers exceptional versatility to suit various applications, from construction and landscaping to general transport.
Trailer dimensions:3900mm*2170mm*1820mm
drawbar:100*50*3.75 ,1500 long
Internal dimensions: 2420mm*1530mm*520mm+600mm
Surface treatment: Hot-dip galvanizing
Fully Welded Body & Chassis: yse

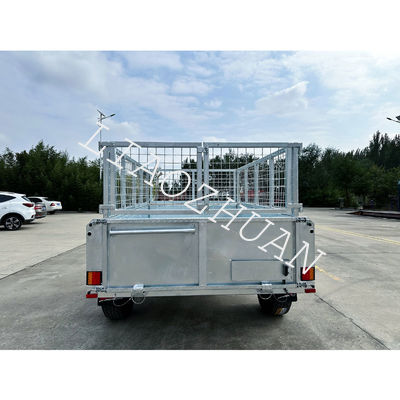

Removable front and rear drop-down doors: yes
Color: Silver

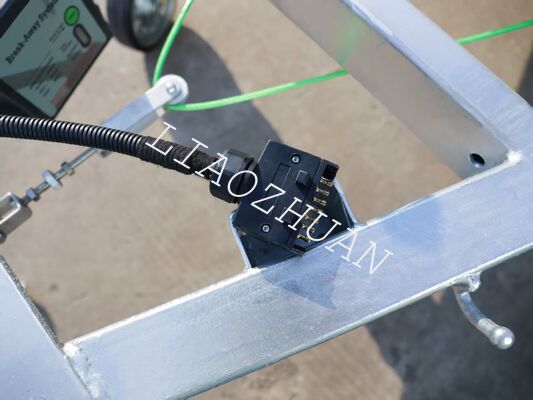

Light: LED ADR light
Axis: 60 square steel bars
ATM: 2000kg
Rated load capacity: 1020kg
Weight of the skin: 980kg
Guide wheel:8 inch
Patterned panel:2.3Pattern
Inclined fuselage:yes
Border:2.3Pattern
Cage: 40*40 square tube 63*60*4 grid
Spring: 9 pieces

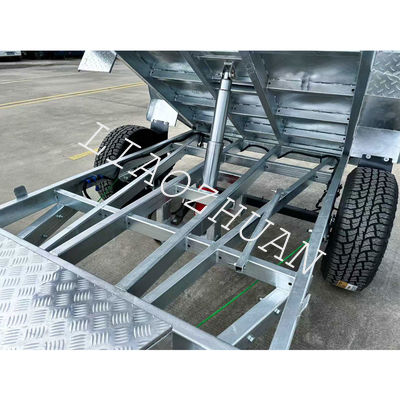

Beam: 80*40*2.5
Tire: 245 off-road tires
Swing wheel: 8 inches, operable

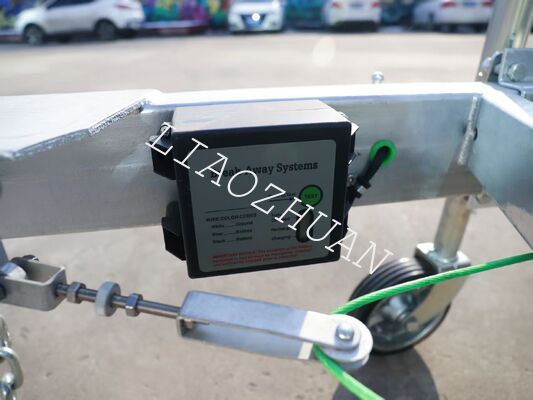

Brake: 12-inch dual electric brakes
Optional toolbox:Aluminum
Certification:9001/TS 16949,CCC,CE,ADR,DOT
