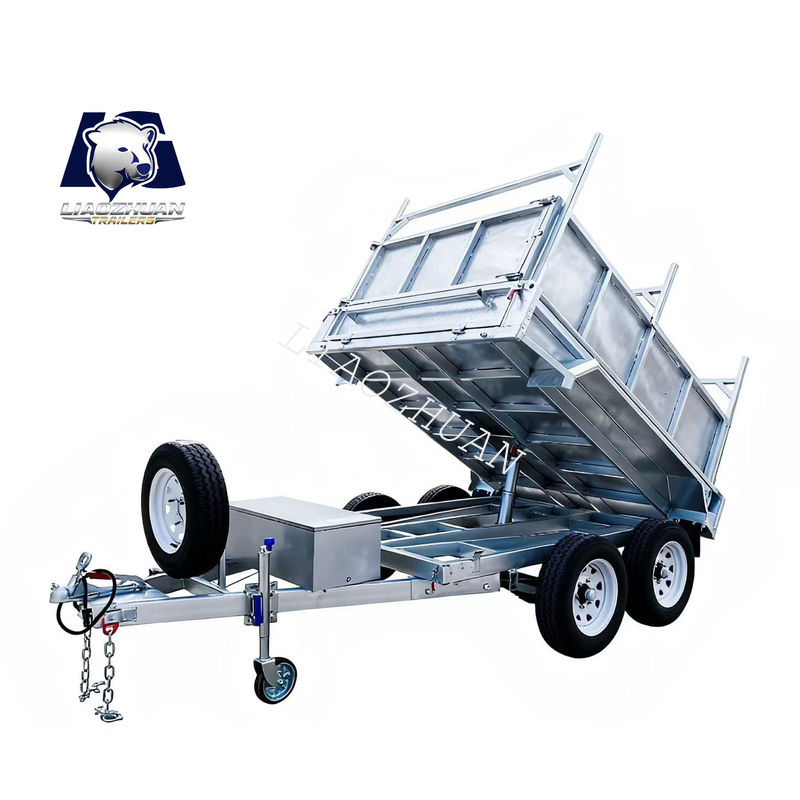

8*5 Double-axis dump box trailer ATM3000kg
The 8*5 Double-axis dump box trailer ATM3000kg is designed for efficient medium-duty transport. Its compact design features a powerful hydraulic tipping mechanism for easy unloading. Its hot-dip galvanized, fully welded body and chassis ensure durability and corrosion resistance.
Key features include high-strength hydraulic cylinders with hydraulic power components, dual 12′′ electric drum brakes, 50mm square solid axles, and 8-leaf leaf springs for enhanced stability and smooth traction. The trailer also features 1500mm tie rods, a lattice floor, removable front and rear doors, tie rods, and a steel toolbox. Optional 600mm/900mm removable cages are available. With internal dimensions of 2440mm x 1530mm x 300mm, it is ideal for construction, agriculture, and landscaping tasks.
Trailer dimensions:3950mm*2100mm*2000mm
Traction bar:100*50*3.75 ,1500 long
Internal dimensions:2440mm*1530mm*300mm+600mm
ATM:3000kg
Surface treatment:Hot-dip galvanizing
Color:Silver
Light:LED ADR light
Axis:50 Square steel
Weight of the skin:950kg
Rated load capacity:2050kg
Box:600mm 40*40mm
Tire:185R14C LT
Brake:10-inch dual-axis electric brake
Fully Welded Body & Chassis
3.0T 4 stages Hydraulic Cylinder with Hydraulic Power pack
Removable Front & Rear Drop Down Gates
Coupling: 50mm 3300kg
Tool Box: Steel
Jockey Wheel: 8" Swing up
Plug: 7 Pin, Flat/ Small Round/ Big Round
Certification:9001/TS 16949,CCC,CE,ADR,DOT
