| MOQ: | 1 |
| Payment Terms: | L/C,D/A,T/T,D/P |
| Supply Ability: | Annual output :2000 |

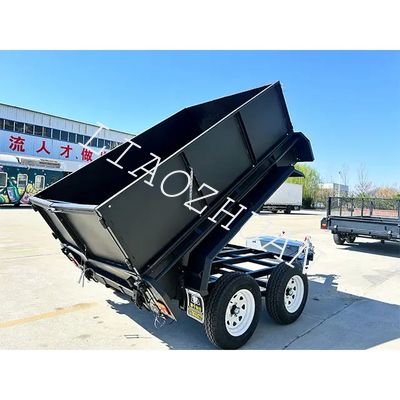

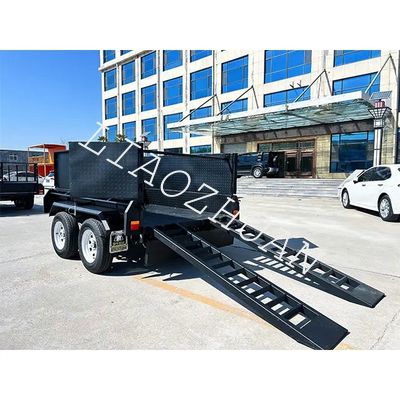

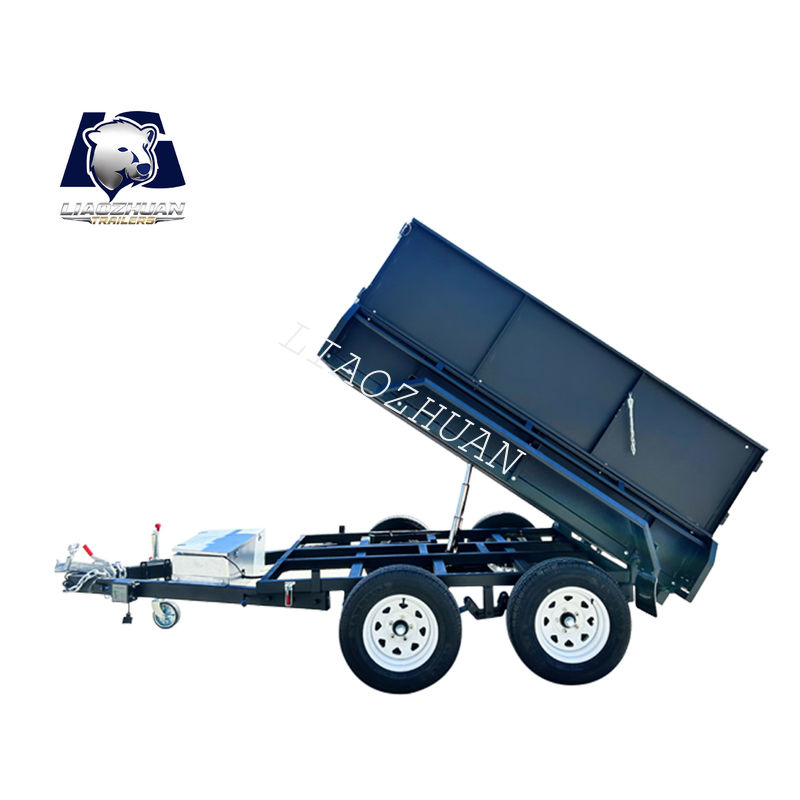

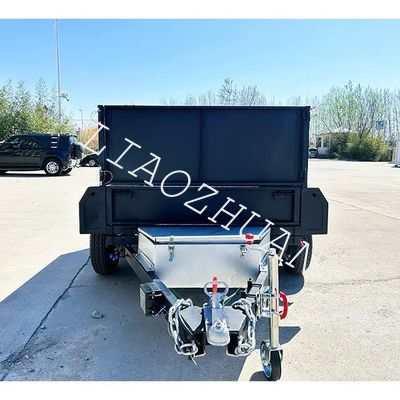

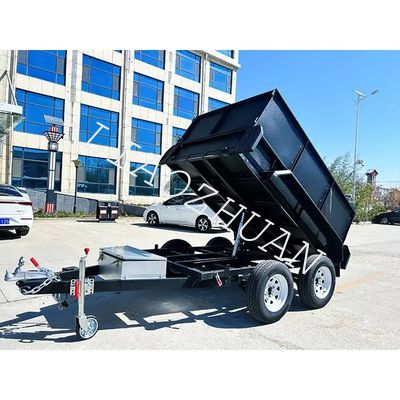

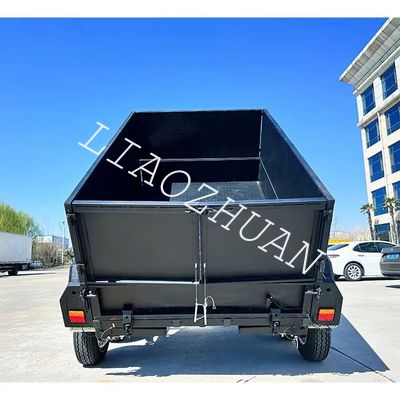

9x6 Hydraulic Tipper Galvanised Box Trailer 3000kg ATM (Electric Brake)
This 13*6 double-axle dump box trailer ATM4500 kg is designed for efficient medium-load transportation. Its compact design is equipped with a powerful hydraulic tilting mechanism, making it easy to unload. The spray painting process and the fully welded body and chassis structure ensure durability and corrosion resistance.
Its main features include high-strength hydraulic cylinders equipped with hydraulic power components, dual 12-inch electric drum brakes, 50 mm square solid shafts, and 8-piece leaf springs to enhance stability and ensure smooth traction. The trailer is also equipped with a 1500 mm tow bar, a grating floor, removable front and rear doors, a tow bar, and a steel toolbox. Optional 600 mm / 900 mm removable cage. It is very suitable for construction, agriculture, animal husbandry and gardening operations.
| Attribute | Value |
|---|---|
| Product name | Two-axle hydraulic dump cage trailer |
| Surface treatment | Spray painting/Hot-dip galvanizing |
| Lamp | LED ADR light |
| Axis | 50 pieces of steel bars |
| Rated load capacity | 3000 kilograms |
| Cage | 600mm 30*30mm |
| Wheels and tires | 185R15LT |
| Beam | 3.2 high strength bending parts |
| Certification | 9001/TS 16949,CCC,CE,ADR,DOT |
