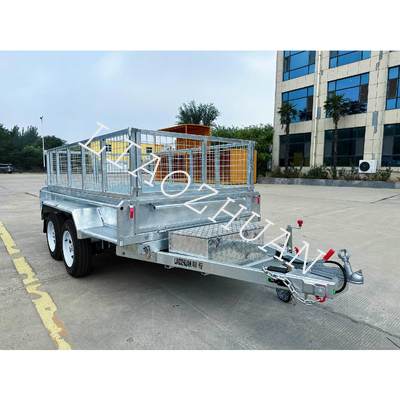

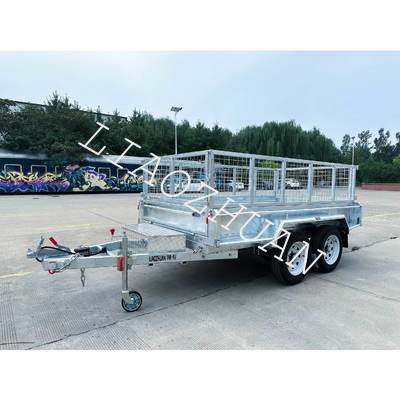

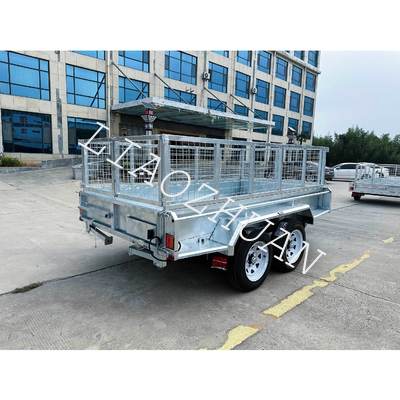

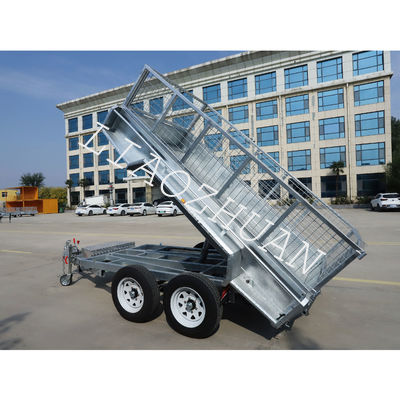

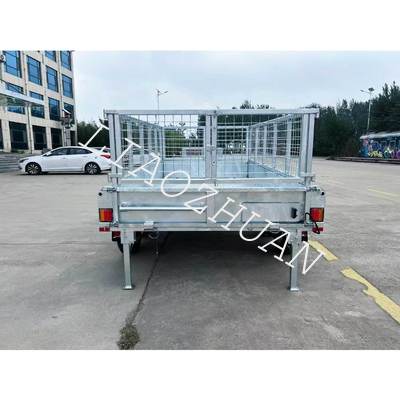

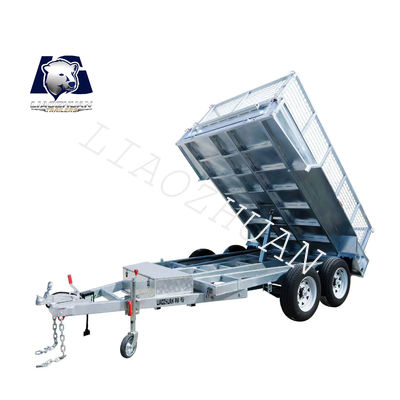

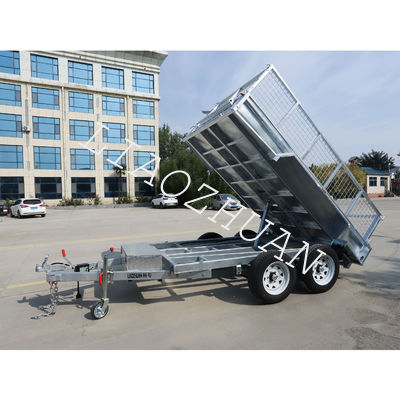

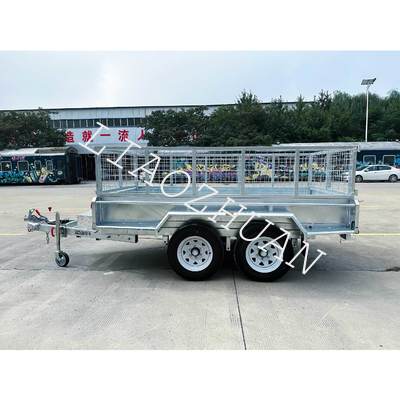

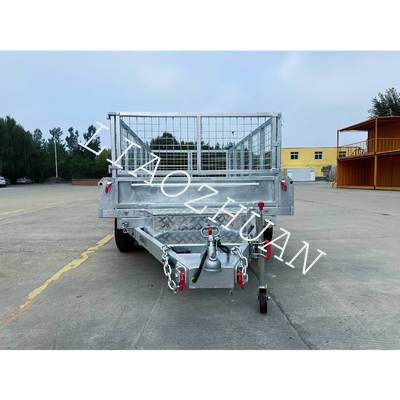

10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer

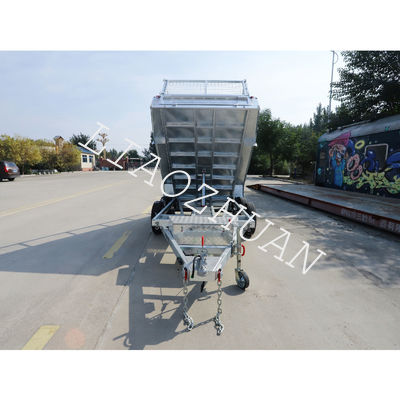

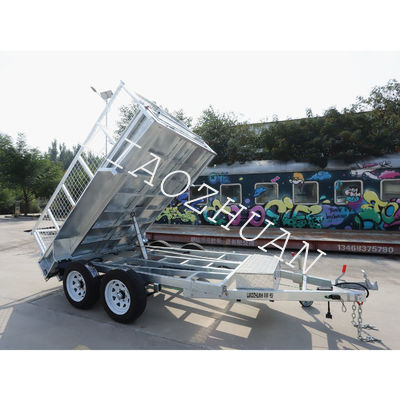

The 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer (3000kg ATM) is designed for efficient medium-duty transport. Its compact design features a powerful hydraulic tipping mechanism for easy unloading. Its hot-dip galvanized, fully welded body and chassis ensure durability and corrosion resistance.
Key features include high-strength hydraulic cylinders with hydraulic power components, dual 12′′ electric drum brakes, 50mm square solid axles, and 8-leaf leaf springs for enhanced stability and smooth traction. The trailer also features 1500mm tie rods, a lattice floor, removable front and rear doors, tie rods, and a steel toolbox. Optional 600mm/900mm removable cages are available. With internal dimensions of 3040mm x 1530mm x 300mm, it is ideal for construction, agriculture, and landscaping tasks.
Trailer dimensions:4600mm*2070mm*1480mm

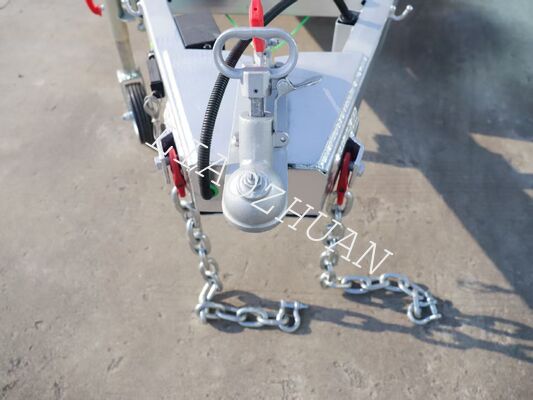

Drawbar:100*50*3.75 ,1500 long
Internal dimensions: 3040mm*1530mm*300mm+600mm
Surface treatment: Hot-dip galvanizing
Fully Welded Body & Chassis: yse

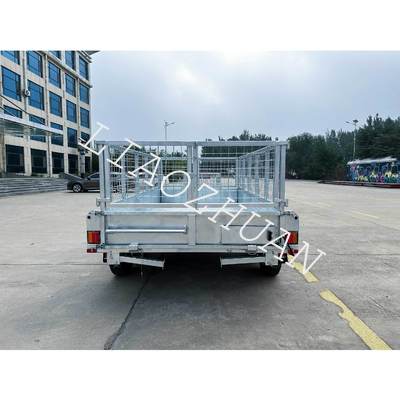

Removable front and rear drop-down doors: yes
Color: Silver
Light: LED ADR light
Axis: 60 square steel bars
ATM: 3000kg
Rated load capacity: 1870kg
Weight of the skin: 1130kg
Guide wheel:8 inch
Patterned panel:2.3Pattern
Inclined fuselage:yes
Border:2.3Pattern
Cage: 40*40 square tube 63*60*4 grid
Spring: 8 pieces
Beam: 80*40*2.5
Tire: 185R15LT
Swing wheel: 8 inches, operable
Brake: 12-inch dual electric brakes

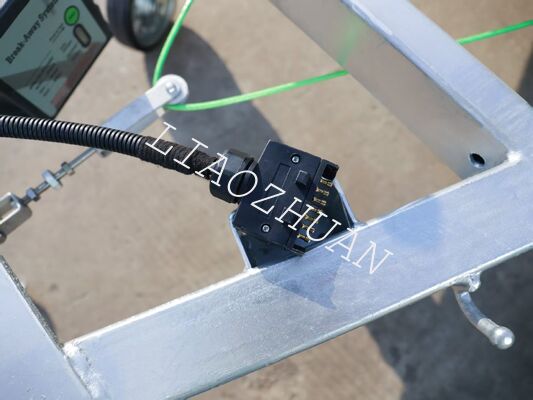

Plug:7 Pin, Flat
Optional toolbox:Aluminum
