| MOQ: | 1 |
| Payment Terms: | L/C, D/A, T/T ,D/P |
| Supply Ability: | Annual output :2000 |

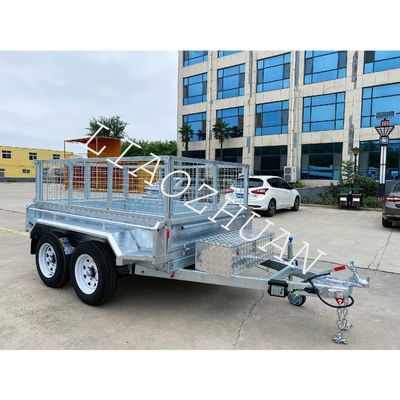

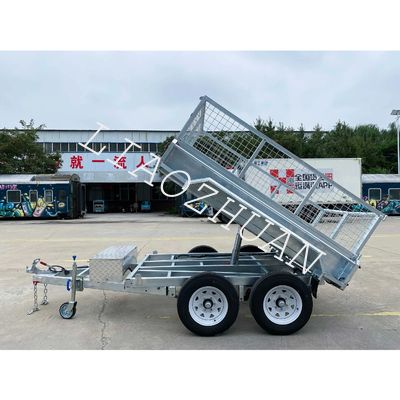

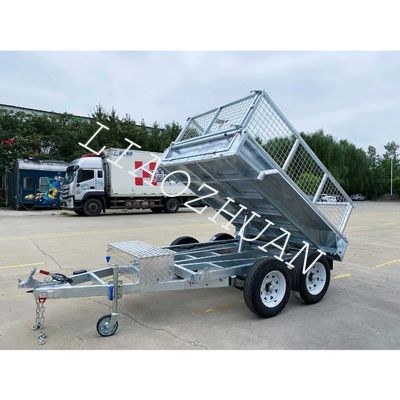

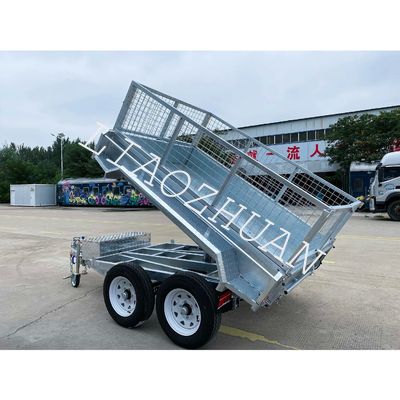

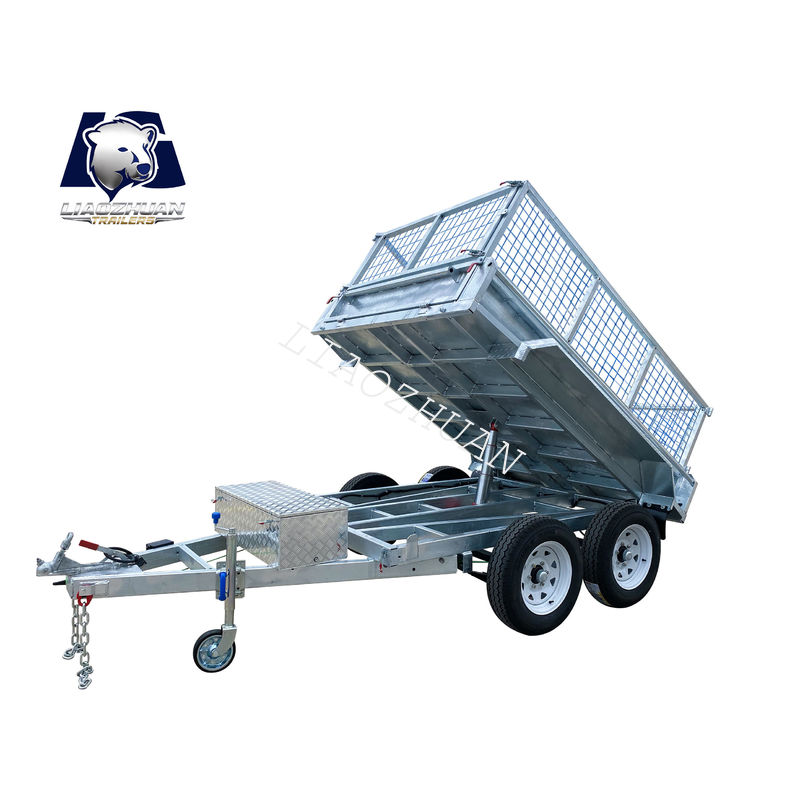

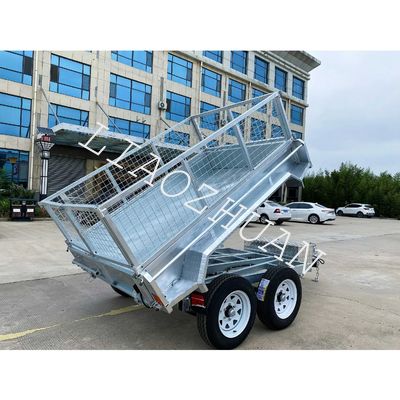

The 8x5 hydraulic hot-dip galvanized box trailer (2000kg ATM) is designed for efficient medium-duty transport. Its compact design features a powerful hydraulic tipping mechanism for easy unloading. Its hot-dip galvanized, fully welded body and chassis ensure durability and corrosion resistance.
Key features include high-strength hydraulic cylinders with hydraulic power components, dual 12′′ electric drum brakes, 50mm square solid axles, and 8-leaf leaf springs for enhanced stability and smooth traction. The trailer also features 1500mm tie rods, a lattice floor, removable front and rear doors, tie rods, and a steel toolbox. Optional 600mm/900mm removable cages are available. With internal dimensions of 2440mm x 1530mm x 300mm, it is ideal for construction, agriculture, and landscaping tasks.
| Attribute | Value |
|---|---|
| Trailer size | 4050mm*2050mm*1480mm |
| Towing rod | 70*50*3.75,1500long |
| Internal dimensions | 2440mm*1530mm*300mm |
| Surface treatment | hot-dip galvanizing |
| Color | silver |
| Lamp | LED ADR |
| Axis | 45 square steel |
| Rated load capacity | 1250kg |
| Tare | 750kg |
| Guide wheel | 8 inches |
| Fully welded | 50*50*3 |
| Patterned plate | 2.0 Pattern |
| Tilted body | 45° |
| Side | 2.0 Pattern |
| Cage | 30 * 30 * 3 mesh 63 * 60 * 4 |
| Leaf spring | 5 pieces |
| Beam | 50*50*3 |
| Tire | 165 |
| Braking | Impact single brake |
| Certification | 9001/TS 16949,CCC,CE,ADR,DOT |
