| MOQ: | 1 |
| Payment Terms: | L/C, D/A, T/T ,D/P |
| Supply Ability: | Annual output :2000 |

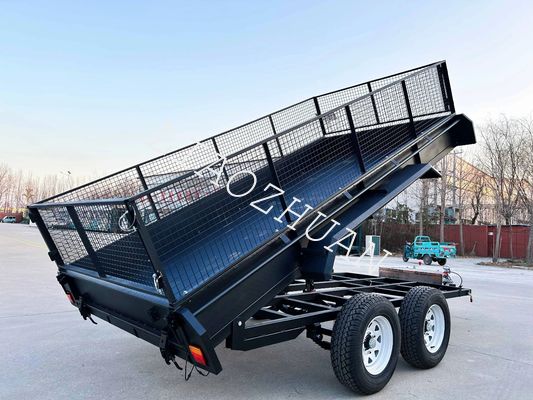

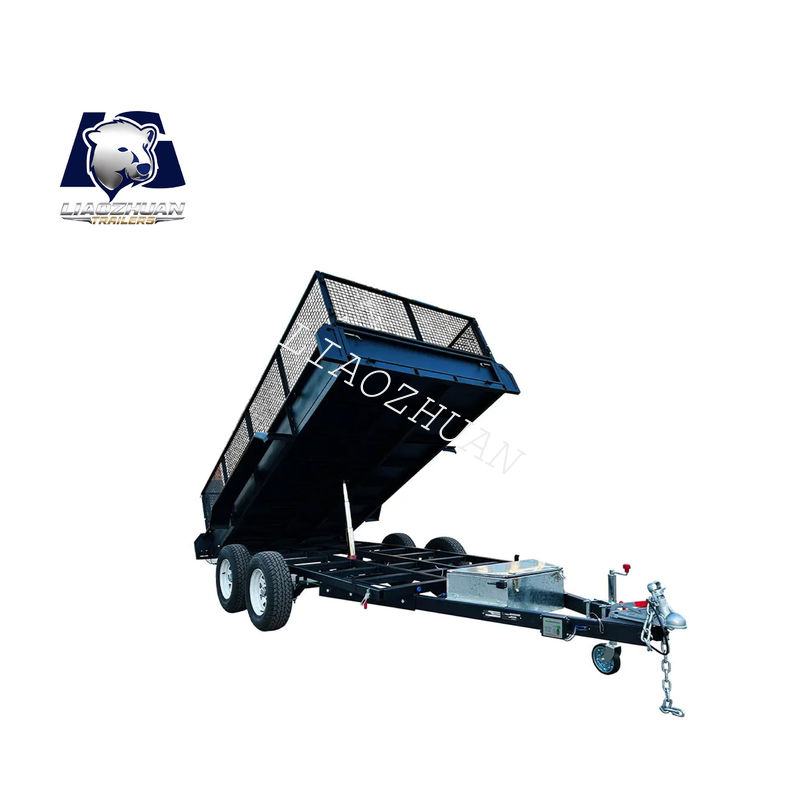

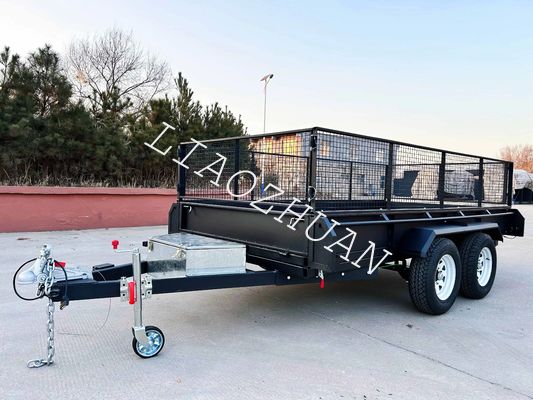

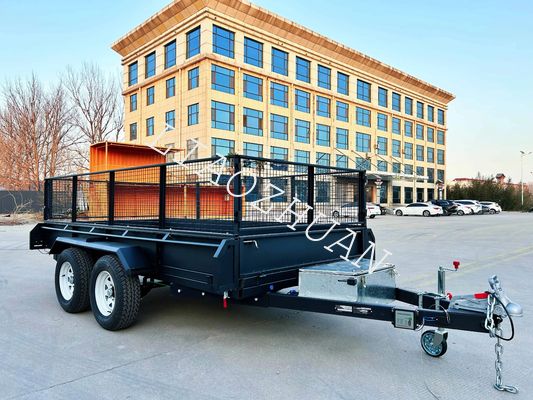

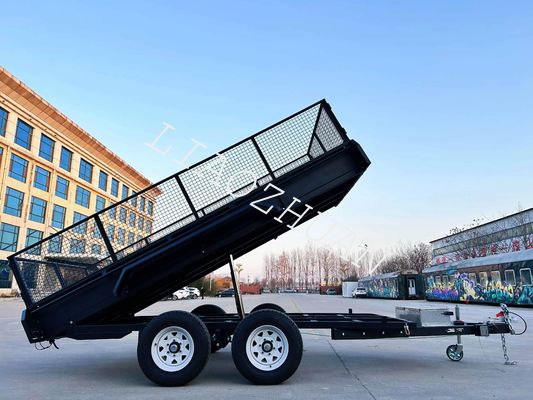

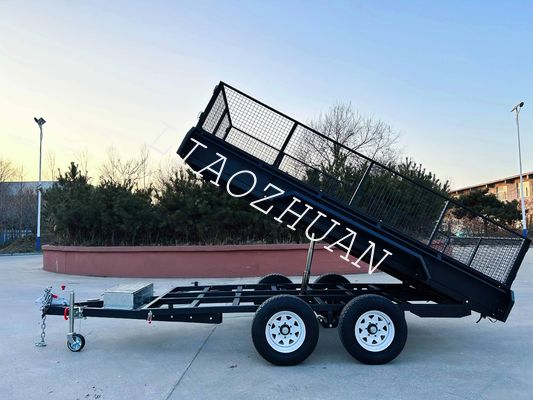

13x6 Hydraulic Tipper Galvanised Box Trailer 4500kg ATM (Electric Brake)
The 13x6 Hydraulic Tipper Galvanised Box Trailer is designed for heavy-duty applications, boasting a 4500kg ATM and electric brakes for reliable performance. Ideal for transporting materials and equipment, this trailer offers durability and ease of use with its hydraulic tipping mechanism.
--- ### Product Attributes| Parameter | Value |
|---|---|
| Trailer size | 13 'x6' 4T |
| Drawbar | 1500mm100x50x5 mm |
| Internal dimensions | 3000 mm x1500 mm |
| Surface treatment | spray paint |
| Color | black |
| Lamp | LED ADR lamp |
| Axis | 50mm2t Solid axis *2 |
| The specified load | 4500 kg |
| Guide wheel | 10" |
| Fully welded | yes |
| Chassis frame | 70*50*3.75 square tube |
| Floor | 2.5 pattern |
| Bar plate | 2.5 pattern |
| Mud tile | 2.5 pattern |
| Hydraulic cylinder | 4 knots 1200 stroke (Max 3T) |
| Side | 300mm 2.5mm fold |
| Cage | 600 mm 30x30 mm |
| Plate storage | 9 |
| Beam | 3.2 High strength bending parts |
| Wheels and tires | 215R15C light truck |
| Brake | 10 inch electric drum brakes |
video
