8x5 Hot-Dip Galvanised Tilt Box Trailer with 750kg ATM Single Axle Design

MOQ:	1
Payment Terms:	L/C,D/A,T/T,D/P
Supply Ability:	Annual output :2000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

9001/TS 16949、CCC、CE、ADR、DOT

Document:

Name:

Tilt Box Trailers

Trailer Dimensions:

8 Ft X 5 Ft

Traction Bar:

70x50x3mm

Internal Dimensions:

2440 Mm X 1530 Mm

Surface Treatment:

Hot-dip Galvanizing

Color:

Silver

Light:

LED ADR Light

750kg

Weight Of The Skin:

449kg

Border:

300mm 2.5mm Fold

Cage:

600 Mm 30x30 Mm

Tire:

165/70R13C

Brake:

No Brakes

Supply Ability:

Annual output :2000

Highlight:

Galvanised Tilt Box Trailers

Tilt Box Trailers 750kg

Single Axle Tilt Trailer 8x5

Product Description

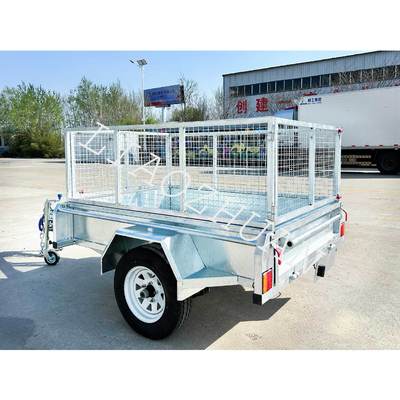

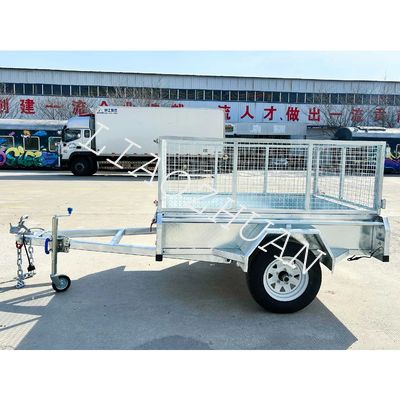

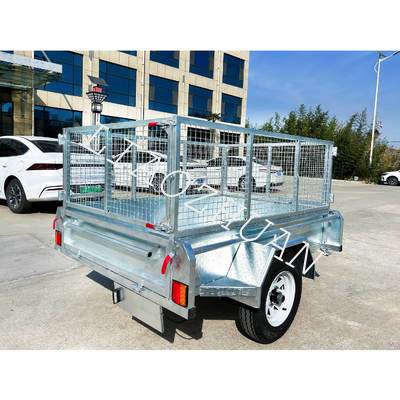

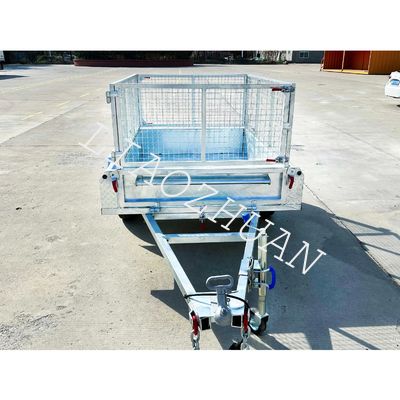

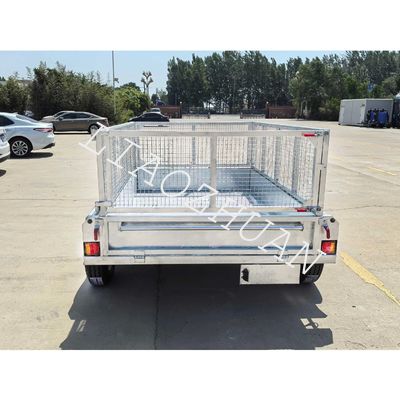

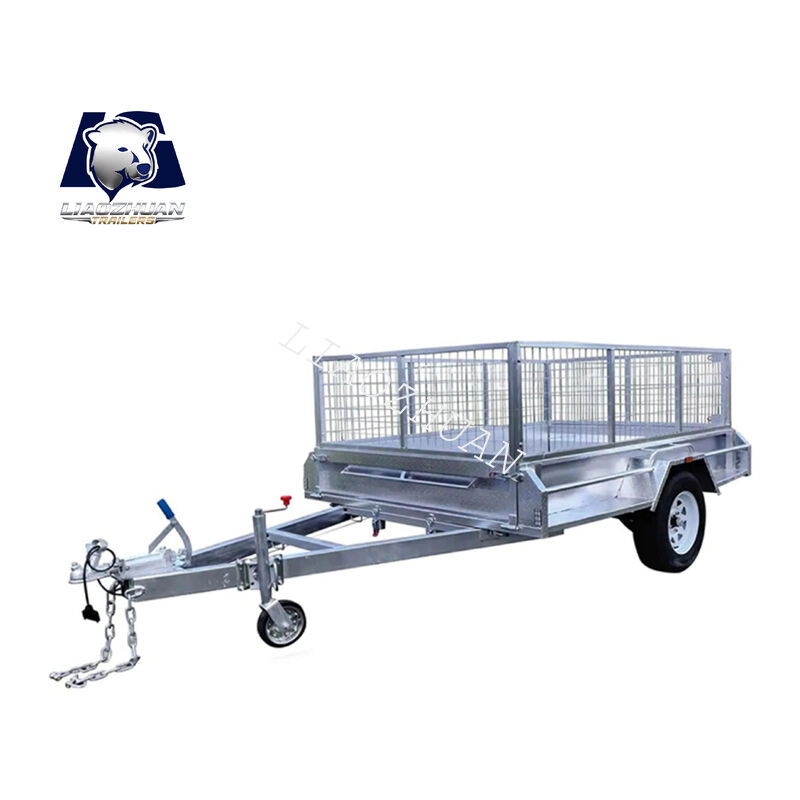

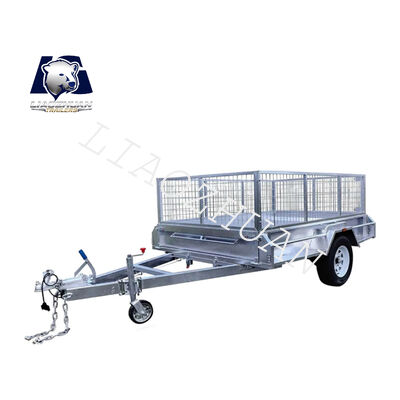

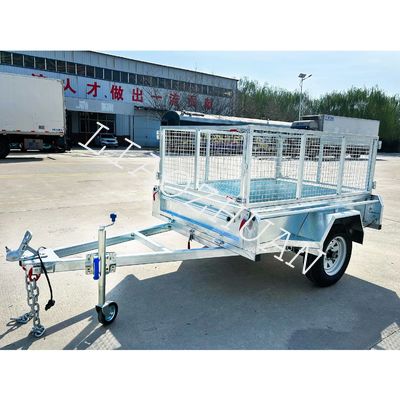

8x5 Premium Single Axle Hot-Dip Galvanised Tilting Box Trailer

Robust 750kg ATM heavy-duty trailer built for demanding hauling tasks with full Australian compliance and certification.

Key Features & Benefits

Hot-dip galvanized surface treatment for superior corrosion resistance
60mm 6-leaf rocker roller springs for enhanced load-bearing capacity
1800mm 100*50mm RHS drawbar for improved towing stability
Choice of 50mm 2000kg over-ride coupling or 50mm 3500kg electric coupling
LED ADR lighting for optimal visibility and safety
Rigorous testing and full certification meeting Australian Design Rules (ADR) and RVSA standards

Technical Specifications

Trailer Dimensions	8 ft x 5 ft
Internal Dimensions	2440 mm x 1530 mm
ATM (Aggregate Trailer Mass)	750kg
Tare Weight	449kg
Traction Bar	70x50x3mm
Border	300mm 2.5mm Fold
Cage Height	600 mm 30x30 mm
Tire Size	165/70R13C
Brake System	No brakes
Color	Silver

Applications

Ideal for construction, landscaping, agricultural use, and general transport applications requiring reliable heavy-duty hauling capability.

Certifications & Compliance

9001/TS 16949, CCC, CE, ADR, DOT - Fully compliant with Australian Design Rules and RVSA standards for legal road use.

Tags:

10*5 Trailer Dimensions 4720 2050 1480mm Tandem Axle Supporting ATM 2000kg Designed For Trailer Performance And Cargo Hauling
