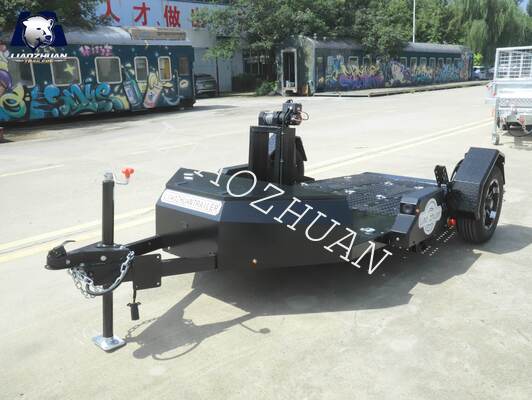

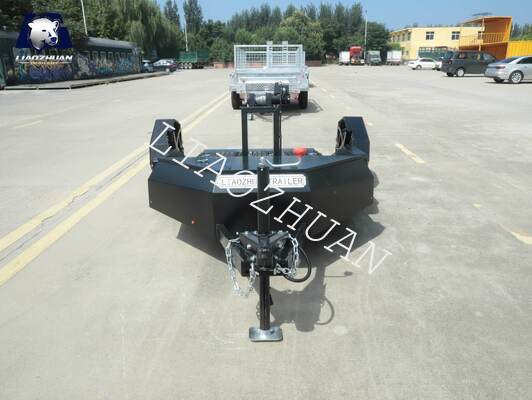

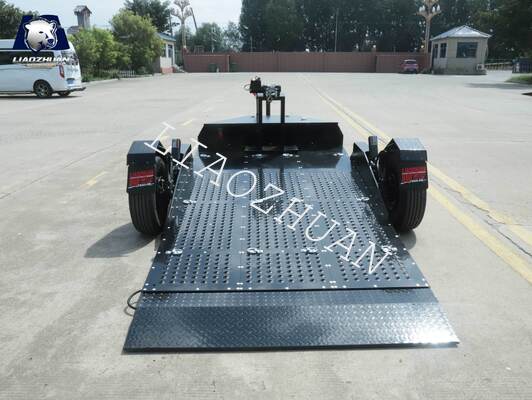

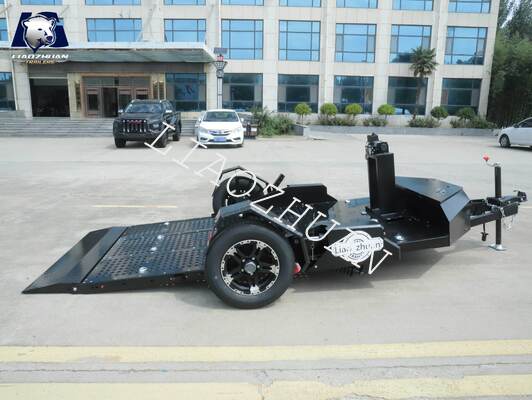

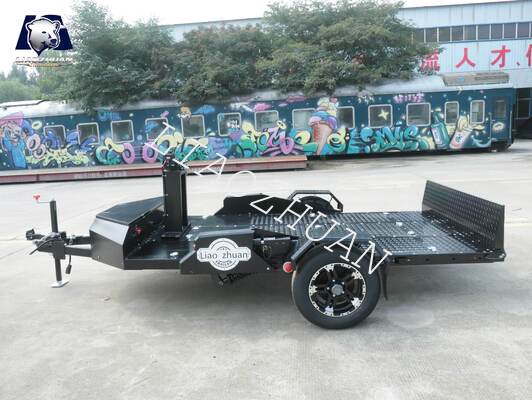

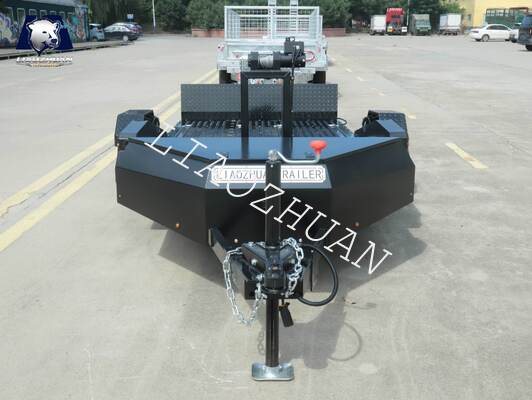

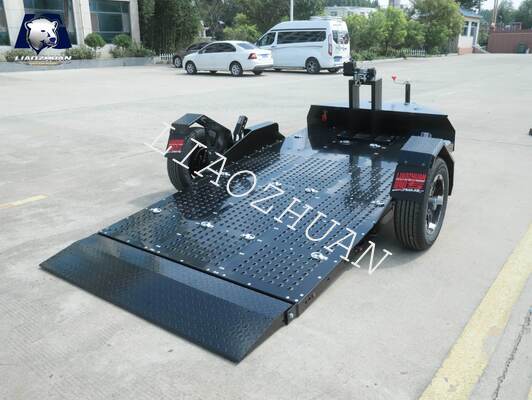

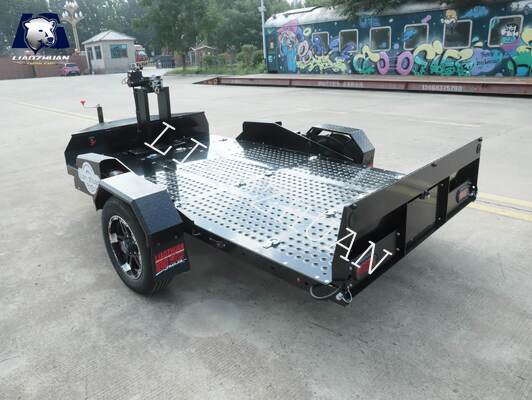

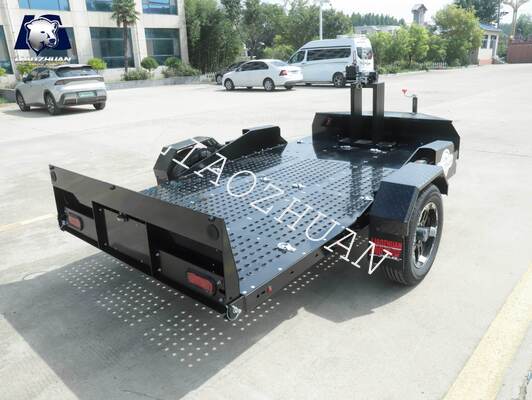

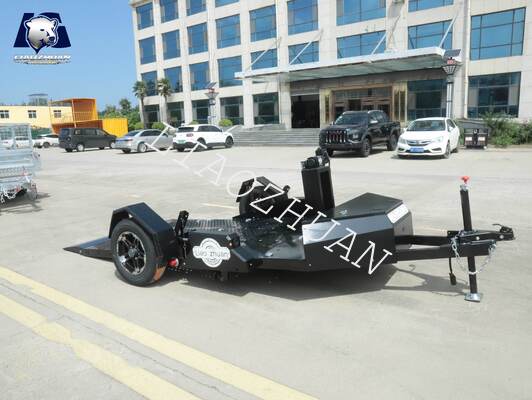

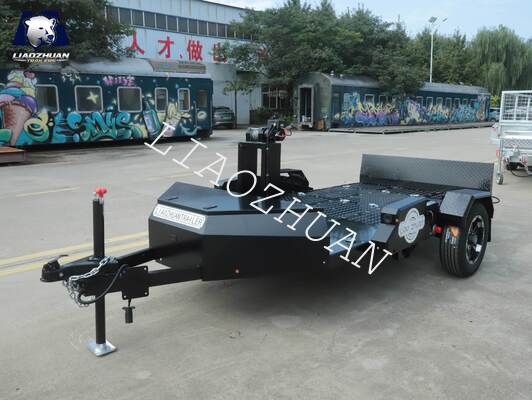

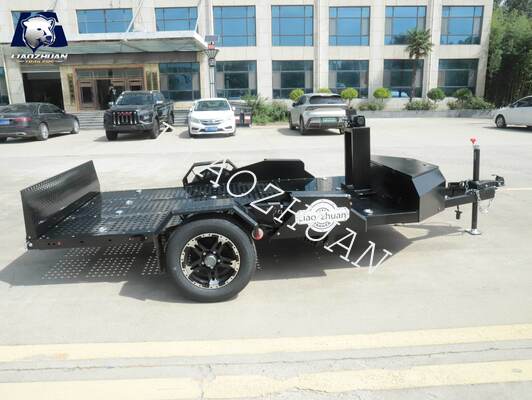

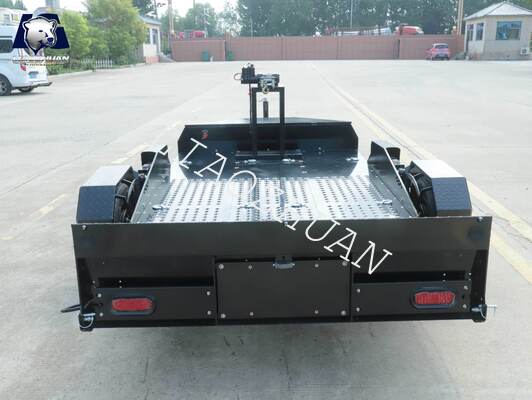

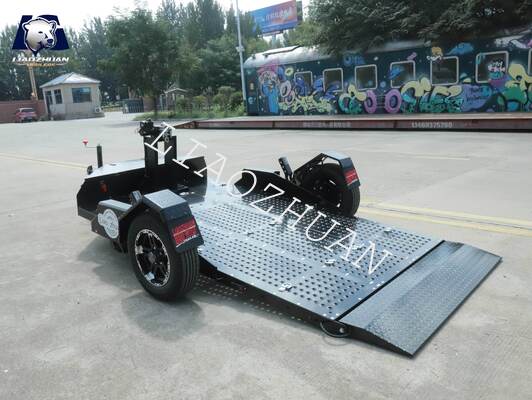

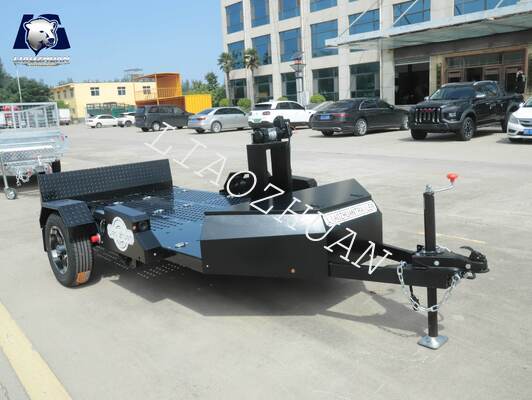

Single‑axis Mobile Energy Storage Device Trailer 1500kg ATM
This single‑axle mobile energy storage trailer is a heavy‑duty transport carrier specially designed for moving mobile energy storage equipment, widely applicable for off‑grid sites, outdoor construction, field emergency power supply and outdoor event deployment. Built with full‑welded steel structure, it adopts independent coil‑spring suspension and electric braking system, delivering stable running performance and reliable load‑bearing capacity, compliant with multiple international certification standards.
Main Specifications
| Overall dimensions | 4160mm*2250mm*780mm |
|---|---|
| Cargo internal dimensions | 2800mm*1600mm |
| Drawbar | 80*40, 13300mm long |
| ATM | 1500kg |
| Rated load capacity | 1200kg |
| Tare weight | 300kg |
| Floor | 2.5 patterned diamond plate panel |
| Surface finish | Painting, standard black colour |

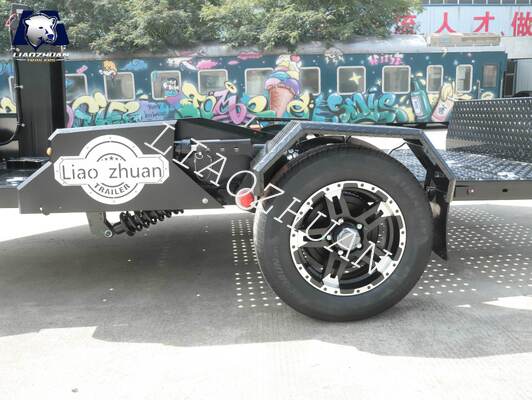

| Suspension | Independent suspension with coil springs |
| Tire | 185/70R14 |
| Brake | Electric brakes |
| Lighting | LED DOT certified lights |
| Connector | American 7‑pin round‑head plug |
| Certifications | ISO9001, TS16949, CCC, CE, ADR, DOT |
Key Features
Suitable for transporting mobile power stations, energy storage cabinets for construction sites, disaster rescue, remote work locations and temporary outdoor power scenarios.
