| Overall Dimensions | 7250 × 2270 × 880mm (Length × Width × Height) with 1350 × 100 × 50mm tow bar |
| Internal Living Space | 5850 × 2200 × 880mm for expandable room layouts and utility installations |
| Weight Capacity | 5500kg Gross Trailer Weight with 1260kg tare weight |

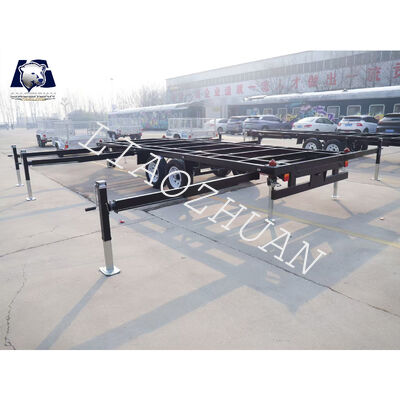

| Frame Construction | Fully welded heavy-duty steel frame using 100×50×25mm main beams and square tube steel tubing |
| Suspension System | 9-leaf rocker roller leaf springs for stable towing across various terrains |
| Braking System | 12-inch electric drum brake with electric brake shaft |
| Wheels and Tires | 265/75R16LT heavy-duty tires for durability and load-bearing performance |

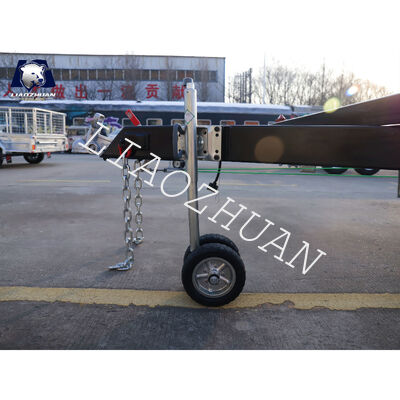

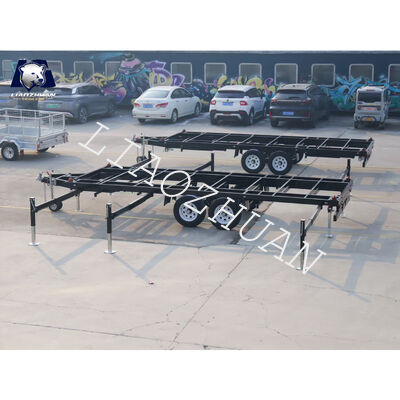

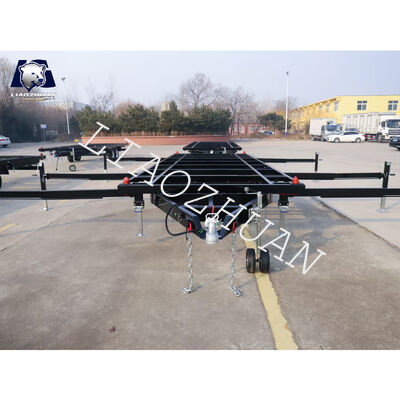

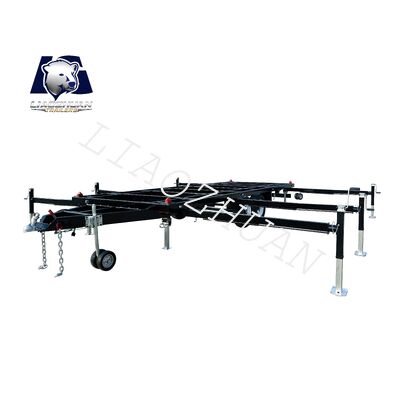

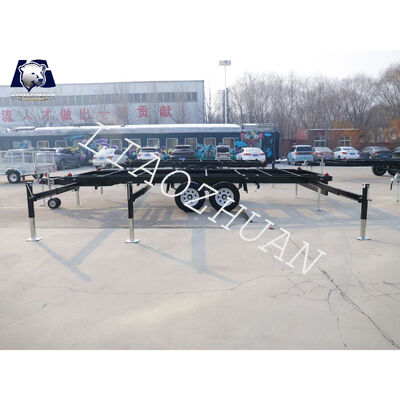

| Support System | 4 adjustable support legs plus 8 expandable supporting legs for extended stability |

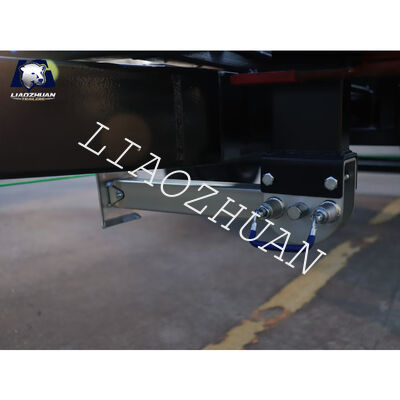

| Traction Bar Support | Heavy-duty outriggers reinforce tow bar connection |

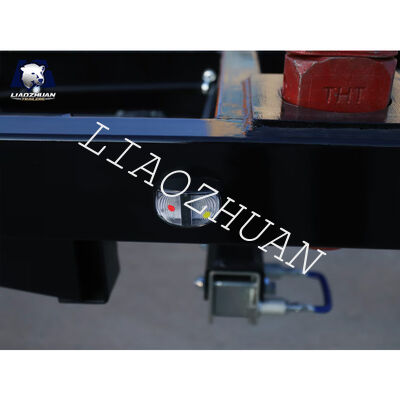

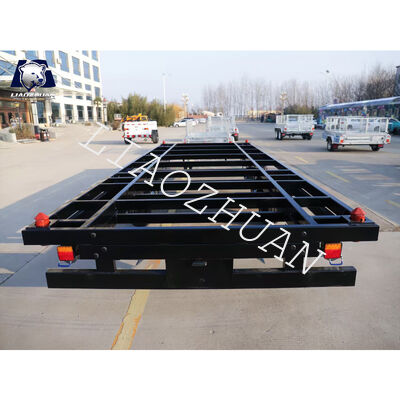

| Lighting | Pre-installed LED DOT lights for superior visibility and compliance |
