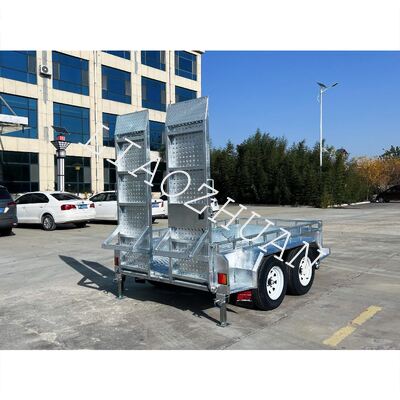

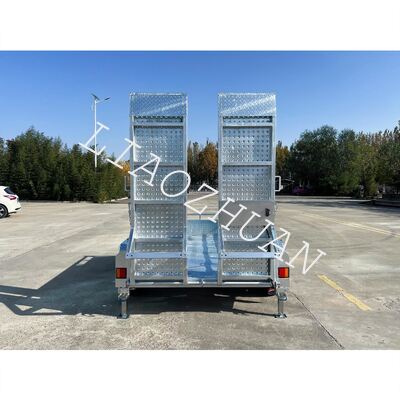

Heavy Duty Plant Trailer - 3.5T Scissor Lift Trailer with Hot-Dip Galvanized Finish, ADR Compliant and 4-Wheel Electric Brake

Heavy Duty Plant Trailer - 3.5T Scissor Lift Trailer with Hot-Dip Galvanized Finish, ADR Compliant and 4-Wheel Electric Brake

Detail Information
Trailer Dimensions:
4255mm*2100mm*2400mm(Climb The Ladder:2000mm)
Drawbar:
100*50*4,1530 Long
Internal Dimensions:
2700mm*1500mm*400mm
Surface Treatment:
Hot-dip Galvanizing
Color:
Silver
Light:
LED ADR Light
Axis:
60 Square Steel Bars, Single-axis Sinking Axle*2, 12-inch Electric Brakes
Rated Load Capacity:
2510kg
Weight Of The Skin:
990kg
Guide Wheel:
8 Inches
Fully Welded:
Yes
Patterned Panel:
2.5 Pattern
Leaf Spring:
8 Leaf Springs×2
Beam:
80*40*3
Tire:
185R14LT
Brake:
Emergency Brake
Connector:
3.5-ton Ball Cover Connector 17/8
Plug:
7-pin Flat Plug
Climbing Ladder Distance:
870-630
Rear Outrigger:
×2
Angle:
13.44
Highlight:

full welded scissor lift trailer

,

ATM3500kg plant trailer

,

9x5 scissor-type lift trailer

Product Description

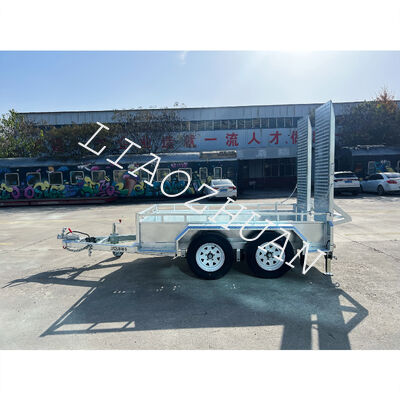

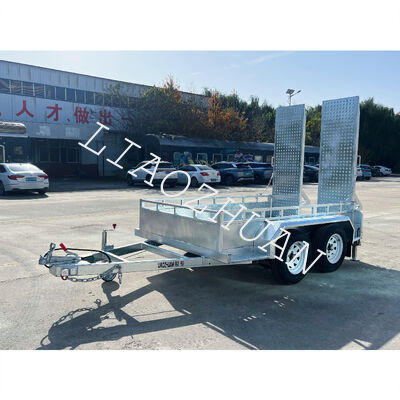

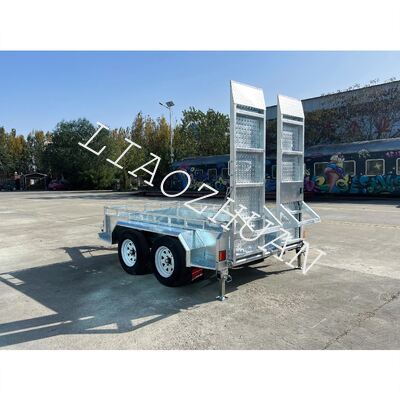

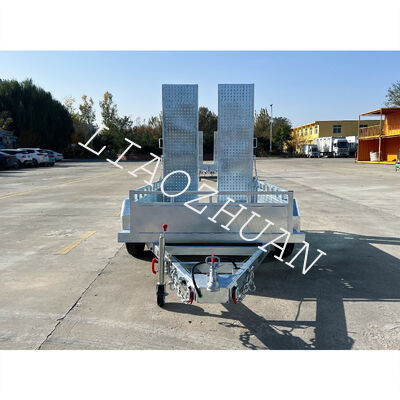

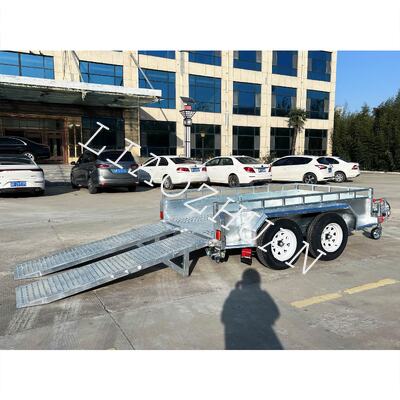

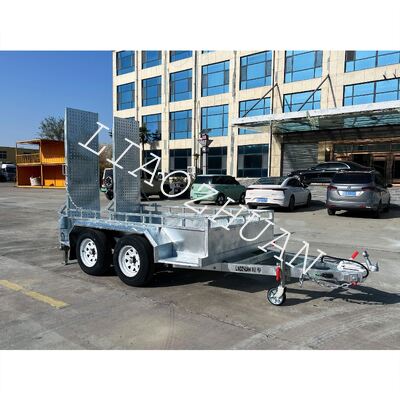

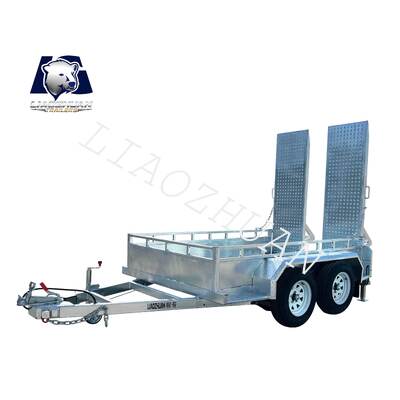

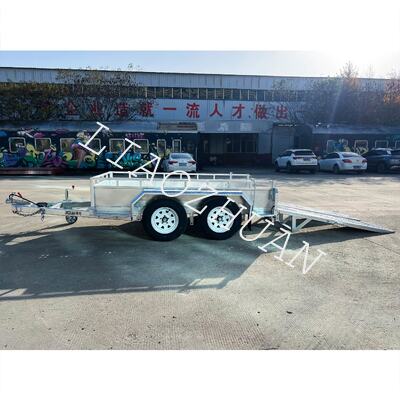

Heavy Duty Plant Trailer - 3.5T Scissor Lift Trailer (9x5ft)
ADR-compliant heavy-duty plant trailer engineered for construction, agriculture, and industrial applications. Built to handle modern machinery including mini diggers, tractors, and chippers with exceptional durability and safety.
Key Features
  • 9x5ft full welded scissor-type lift design
  • 3500kg ATM rating with 2510kg rated load capacity
  • ADR compliant - meets Australian Design Rules
  • Four-wheel electric braking system with emergency brake
  • Hot-dip galvanized surface treatment for maximum corrosion resistance
  • LED ADR lighting system
  • Reinforced loading structure with 2.3 patterned panel
Technical Specifications
Trailer Dimensions 4255mm × 2100mm × 2400mm (Climb ladder: 2000mm)
Internal Dimensions 2700mm × 1500mm × 400mm
Drawbar 100×50×4, 1530mm long
Surface Treatment Hot-dip galvanizing (Silver)
Axle System 60 square steel bars, single-axis sinking axle ×2
Brake System 12-inch electric brakes (4-wheel)
Tire Specification 185R14LT
Guide Wheel 8 inches
Leaf Spring 8 leaf springs ×2
Beam 80×40×3
Connector 3.5-ton ball cover connector 17/8
Plug Type 7-pin flat plug
Climbing Ladder Distance 870-630mm
Rear Outrigger ×2
Angle 13.44°
Weight 990kg (skin weight)
Certifications & Compliance
9001/TS 16949, CCC, CE, ADR, DOT - Fully certified for professional use and regulatory compliance across multiple markets.
